Description

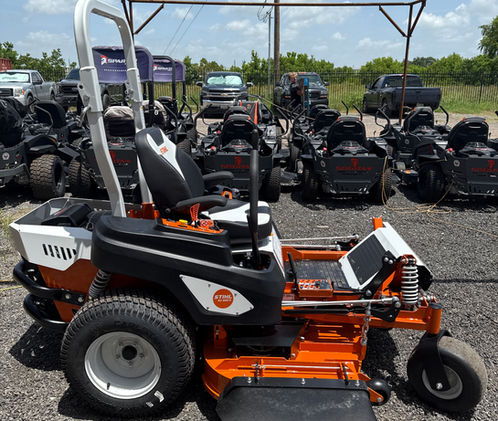

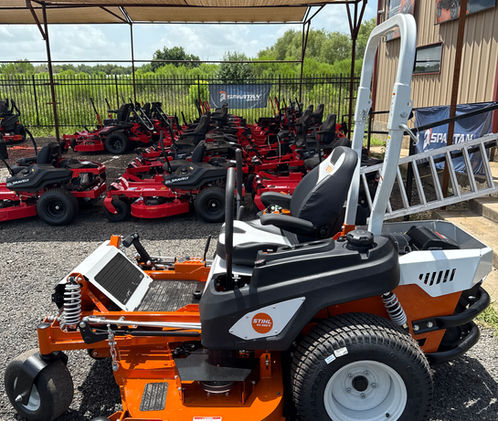

With an advanced suspension system and a commercial-grade 60” mowing deck, the STIHL RZ 560 K zero-turn mower is built for durability, operator comfort, and a long life span. The two-belt deck pulley system reduces stress on each belt to keep the 24 hp Kawasaki engine running cooler with less maintenance. The Hydro-Gear® ZT-3400 transaxles enable ten mph forward ground speed and five mph in reverse, allowing for smooth and efficient cutting.
HORSEPOWER
24 hp
FUEL SYSTEM
Carbureted
FUEL TANK CAPACITY
5.5 gal.
DISPLACEMENT
726 cc
TRANSAXLES
Hydro-Gear ® ZT-3400
FORWARD GROUND SPEED
10 mph
REVERSE GROUND SPEED
5 mph
FRONT TIRES
13 x 6.5-6
REAR TIRES
23 x 10.5-12
WEIGHT
1,291 lbs.
POWER SOURCE
Gas
ENGINE GOVERNOR
Kawasaki FT730V
SPINDLE SHAFT DIAMETER
1 in.
SPINDLE BEARINGS
2.5" x 1" Dual Ball Bearing
USB AMPERAGE
3.15 A
FRONT SUSPENSION TRAVEL
2.05 in.
REAR SUSPENSION TRAVEL
2.68 in.
