Description

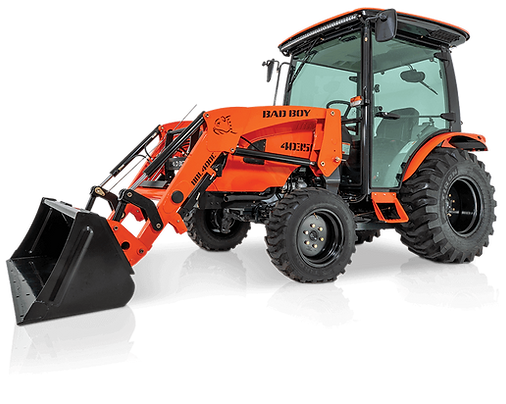

The 4035 Series is the largest tractor in the Bad Boy Tractor stable with 35hp. The eco-friendly "A" Series diesel engine sips fuel while providing maximum performance in speed, power and lifting up to 2,200 lbs.
ENGINE
ENGINE: 3 CYLINDER, WATER-COOLED, DIESEL
ENGINE HP @ RPM: 35
DISPLACEMENT (IN.): 104.5
NUMBER OF CYLINDERS: 3
FUEL TANK (GAL.): 7.1
DRIVETRAIN
TRANSMISSION: HST
NUMBER OF SPEEDS: 3 RANGE
CLUTCH: NO
BRAKES: WET, MULTI-DISC
HYDRAULICS
TYPE: HYDRO-STATIC POWER STEERING
TOTAL HYDRAULIC FLOW (POWER STEERING + IMPLEMENT): 12.6 (4.4+8.2)
3-POINT HITCH: CAT 1
REAR REMOTE VALVE: OPTIONAL (UP TO 2)
3-POINT HITCH LIFT CAPACITY @ 24" BEHIND LIFT POINT @ BALL ENDS (LBS.): 1,100
DIMENSIONS
OVERALL LENGTH: 134.88"
OVERALL WIDTH: 4035H - 56.7" | 4035CH - 55.6"
OVERALL HEIGHT: 104.06"
WHEELBASE: 65.7"
MINIMUM GROUND CLEARANCE: 13.1"
WEIGHT: 4035H - 3,164 LBS. | 4035CH - 3,551 LBS.
PTO
TYPEL: INDEPENDENT
REAR (MID) PTO SPEED: 540
PTO HP: 29.54035
ELECTRICAL
BATTERY: 12 V, 540 CCA
ALTERNATOR: 12 V, 50 A
WHEELS & TIRES
IND (FRONT): 28X8.50-15
IND (REAR): 43X16.00-20
LOADER - MODEL BBL400
STANDARD BUCKET SIZE (IN.)62MAXIMUM LIFT HEIGHT (IN.): 104
DIG DEPTH (IN.): 1.8
LIFT CAPACITY TO FULL HEIGHT AT PIVOT PIN (LBS.): 2,200
BREAKOUT FORCE (LBS.): 3,660
SHIPPING WEIGHT (LBS.): 1,007
BACKHOE - MODEL BBH400
STANDARD BUCKET SIZE (IN.): 16
TYPE: SUBFRAME-MOUNTED, QUICK ATTACH
MAXIMUM DIG DEPTH (IN.): 92.2
DIG FORCE BUCKET (LBS.): 4,380
SHIPPING WEIGHT (LBS.): 1,270
