Apex 60 - Kawasaki®

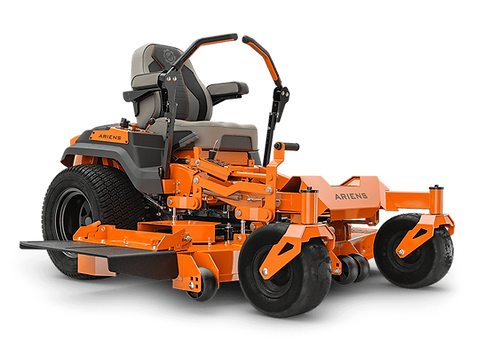

The Ariens APEX 60 Kawasaki® Zero-Turn Mower is a heavy-duty workhorse built for large properties and demanding terrain. Powered by a 24 hp Kawasaki® FR730V engine and equipped with a 60-inch 10-gauge steel fabricated deck, it delivers commercial-grade performance with residential comfort. Its fully welded frame, Hydro-Gear® ZT-3100® transaxles, and self-adjusting belt technology ensure durability and smooth operation at speeds up to 8 mph. Perfect for landowners in and around Waller, TX, the APEX 60 is backed by the trusted service and support of Waller County Equipment.
SPECIFICATIONS
Overview
Featuring our most powerful engine, the 24 hp/726 cc Kawasaki® FR730V
60” ENVY™ ELITE CUTTING SYSTEM fabricated deck is 5½” deep and made of 10-gauge steel
Fully tubular steel frame, Self-adjusting belt technology, High-Back Padded Seat and armrests, Foot-operated deck lift
ENGINE
ENGINE | Kawasaki® FR730V |
ENGINE DISPLACEMENT | 726 cc |
HORSEPOWER | 24 |
FUEL CAPACItY (GAL/LTR) | 5.1 gal / 19.3 ltr |
DECK
CUTTING WIDTH (IN/CM) | 60 in. / 152.4 cm |
CUTTING HEIGHT MIN. | 1.5 in / 3.8 cm |
CUTTING HEIGHT MAX. | 5 in / 12.7 cm |
CUTTING POSITIONS | 15 |
SPINDLE MATERIAL | Forged Aluminum |
DECK ENGAGEMENT | Electric Warner |
DECK LIFT SYSTEM | Foot Operated |
DECK LIFT ASSIST SPRING | Standard |
DRIVE SYSTEM
DRIVE SYSTEM | Hydro-Gear® ZT-3100® Transaxles |
GROUND SPEED FORWARD (MPH/KPH) | 8 mph / 12.9 kph |
GROUND SPEED REVERSE (MPH/KPH) | 4 mph / 6.4 kph |
DIMENSIONS
WEIGHT (ASSEMBLED) | 845 lbs. |
LENGTH | 79 in. / 200.7 cm |
WIDTH (CHUTE UP) | 63.7 in. / 161.8 cm |
WIDTH (CHUTE DOWN) | 74.8 in / 190 cm |
FEATURES
AUXILIARY POWER | N/A |
FLOOR MAT | N/A |
DECK PAN STORAGE TRAY | N/A |
LIGHTS | Accessory |
SEAT ISOLATION | Accessory |
WARRANTY
4 Years or 500 Hours
