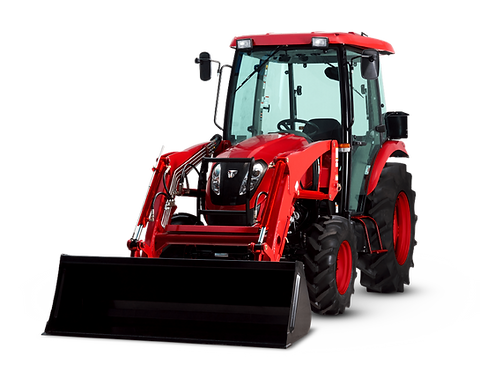

TYM T554 Compact Tractor
THE DETAILS
How the T554 handles day-to-day acreage work
With 55.9 engine horsepower and synchro-shuttle or hydrostatic transmission options, the T554 is configured for mowing, loader work, and property maintenance. Its listed PTO output is 45.6 hp for powered implements. Review the dimensions, engine, and drive details below when comparing tractor options.
Shop Our Inventory
This model isn’t in stock right now.
Explore our current tractor inventory to find a similar model, or contact our team for help finding the right fit.
ENGINE
Engine Manufacturer
Yanmar 4TNV86CT
Type
Turbocharger
Engine power
55.9 hp | 41.2 kW
PTO power
45.6 hp | 33.5 kW
Rated engine speed
2800 rpm
No. of cylinders
4
Displacement
127.6 cu. in. | 2091 cc
Air cleaner
Dual dry
Alternator
12V, 70A
Fuel system
CRDI
FEATURES
Transmission type
Synchro-shuttle / HST
No. of speeds
F16 x R16 / Infinite 3-Range
Max. traveling speed
18.4 mph | 29.7 km/h
Brakes
Wet disc
Steering
Hydrostatic
Clutch
Gear: Dry single plate / HST: N/A
MEASUREMENTS
Overall length with 3-point hitch
141.3 in. | 3590 mm
Overall width
63.8 in. | 1620 mm
Wheelbase
76.2 in. | 1935 mm
Height to top of ROPS
102.1 in. | 2594 mm
Min. ground clearance
13.8 in. | 350 mm
Min. turn radius with brakes
131.9 in. | 3352 mm
Min. turn radius without brakes
150.4 in. | 3820 mm
Weight with ROPS
3814 lb | 1730 kg
