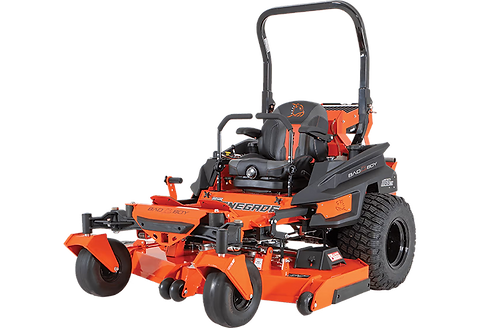

Bad Boy Renegade 61" 1100cc Perkins 24.7HP
THE DETAILS
Diesel power in the Renegade line
For professional crews covering large properties, the Bad Boy Renegade 61" 1100cc Perkins 24.7HP provides 61-inch cutting width and Perkins power. The diesel Renegade combines the series’ substantial construction with a diesel powerplant and commercial cutting platform. The details below show the equipment fitted to this particular model.
DRIVE LINE
Engine
Perkins Diesel 1100cc, 24.7 hp 1.1L 3 Cylinder
Transmission
Hydro-Gear® 16cc Pump; Parker® 18ci Wheel Motors
Peer, Maintenance-Free Spindles
Front Tires / Rear Tires
26x12-12 Reaper®/15x6-6 Smooth No-Flat Front
Fuel
13 gal., Diesel
Ground Speed Forward
13 mph
FEATURES
Dual Pump Belt System with Tensioner Design
Patented 3-Link Rear Trailing Arm Suspension
Patented Independent Front Suspension
Sloped 1/4˝or 3-Gauge Deck with Reinforced 3/8˝ Sides
Heavy-Gauge, All-Steel, All-Welded Frame
Patented Dual Deck Support Isolators
Digital Diagnostics Display
Key Fob Start
DECK
Deck Height/Length
51"/91"
Cutting Width
72"
Chute Up / Chute Down Width
74.5"/86.5"
Deck Thickness
1/4" or 3-Gauge Thick Solid Steel
Cutting Height
2" - 6"
Lift & Height Adjustment
Foot-Assist Manual Lift with Dial-Style Height Adjustment. Optional Electric Lift.
Foot-Assist Manual Lift with Dial-Style Height Adjustment. Optional Electric Lift.
