Description

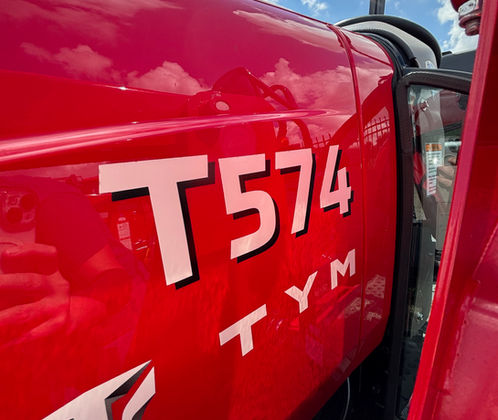

When it comes to all-around productivity, look no further than the T574. This compact tractor is designed to boost output, delivering impressive efficiency and the practical features that define the TYM Series 4.
Engine
Engine Manufacturer
TYM A2300T3
Type
Turbocharger
Engine power
55.1 hp | 41.1 kW
PTO power
Gear: 44.1 hp | 32.9 kW / HST: 42.6 hp | 31.8 kW
Rated engine speed
2600 rpm
No. of cylinders
4
Displacement
139.5 cu. in. | 2286 cc
Air cleaner
Dual dry
Alternator
12V, 70A
Fuel system
IDI
Drive Line
Transmission type
Synchro-shuttle / HST
No. of speeds
F8 x R8 / Infinite 3-Range
Max. traveling speed
Gear: 18.5 mph | 29.8 km/h / HST: 15.1 mph | 24.3 km/h
Brakes
Wet disc
Steering
Hydrostatic
Clutch
Gear: Dry single plate / HST: N/A
Measurements
Overall length with 3-point hitch
141.3 in. | 3589 mm
Overall width
63.8 in. | 1621 mm
Wheelbase
76.2 in. | 1935 mm
Height to top of ROPS
102.1 in. | 2594 mm
Min. ground clearance
13.8 in. | 350 mm
Min. turn radius with brakes
121.2 in. | 3080 mm
Min. turn radius without brakes
131.5 in. | 3340 mm
Weight with ROPS
3887 lb | 1763 kg
