Description

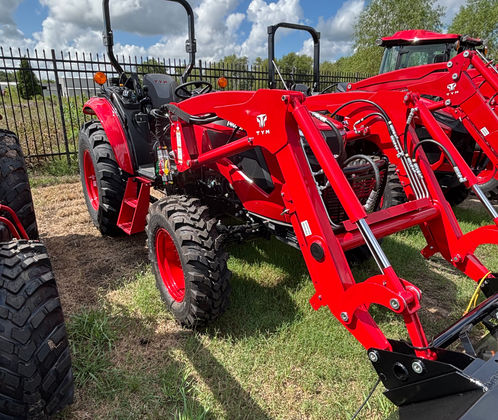

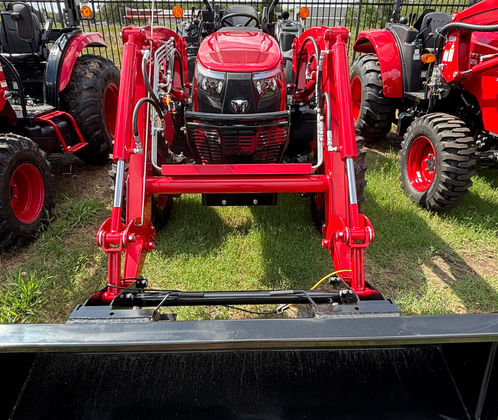

When it comes to all-around productivity, look no further than the T4058P. This compact tractor is designed to boost output, delivering impressive efficiency and deluxe features that have become the hallmark of the TYM Series 4.
Engine
Engine Manufacturer
TYM T2300T1-UTR_4
Type
Turbocharger
Engine power
58 hp | 43.3 kW
PTO power
48 hp | 35 kW
Rated engine speed
2600 rpm
No. of cylinders
4
Displacement
139.5 cu. in. | 2286 cc
Air cleaner
Dry element
Alternator
12V, 70A
Fuel system
Water-cooled IDI
Drive Line
Transmission type
Power shuttle
No. of speeds
F12 x R12
Max. traveling speed
24.04 mph | 38.7 km/h
Brakes
Wet, multi-disc
Steering
Hydrostatic
Clutch
Wet, multi-disc
Measurements
Overall length with 3-point hitch
141.5 in. | 3595 mm
Overall width
68.9 in. | 1750 mm
Wheelbase
78.7 in. | 2000 mm
Height to top of ROPS
104.7 in. | 2660 mm
Min. ground clearance
18.1 in. | 460 mm
Min. turn radius with brakes
Left: 121.9 in. | 3098 mm / Right: 125.3 in. | 3184 mm
Min. turn radius without brakes
Left: 139.7 in. | 3550 mm / Right: 141.9 in. | 3606 mm
Weight with ROPS
4506 lb | 2044 kg
