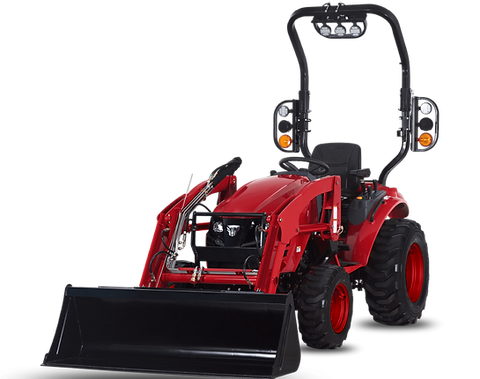

TYM T25 Sub-Compact Tractor
THE DETAILS
How the T25 handles compact-property versatility
The T25's 24.7-hp engine and hydrostatic transmission give this sub-compact tractor its working character. Its listed PTO output is 16.6 hp for powered implements. Use the full specs below to compare it with other TYM models for mowing, landscaping, and smaller property chores.
Shop Our Inventory
This model isn’t in stock right now.
Explore our current tractor inventory to find a similar model, or contact our team for help finding the right fit.
ENGINE
Engine Manufacturer
Yanmar 3TNV80F-NXD
Type
Natural aspiration
Engine power
24.7 hp | 18.4 kW
PTO power
16.6 hp | 12.5 kW
Rated engine speed
3000 rpm
No. of cylinders
3
Displacement
77.3 cu. in. | 1267 cc
Air cleaner
Single dry
Alternator
12V, 40A
Fuel system
IDI
FEATURES
Transmission type
HST
No. of speeds
Infinite 2-Range
Max. traveling speed
12.7 mph | 20.4 km/h
Brakes
Wet disc
Steering
Hydrostatic
Clutch
N/A
MEASUREMENTS
Overall length with 3-point hitch
111.4 in. | 2829 mm
Overall width
54.5 in. | 1384 mm
Wheelbase
61 in. | 1550 mm
Height to top of ROPS
98.6 in. | 2505 mm
Min. ground clearance
10.5 in. | 267 mm
Min. turn radius with brakes
102.4 in. | 2602 mm
Min. turn radius without brakes
109.5 in. | 2782 mm
Weight with ROPS
2425 lb | 1100 kg
