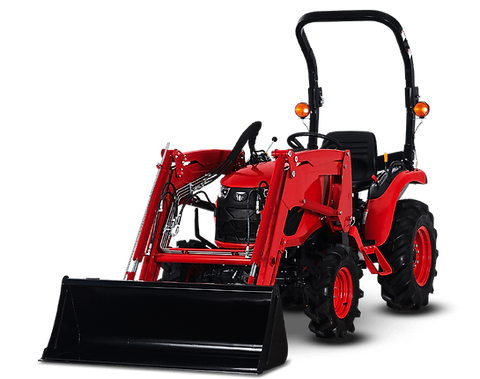

TYM 2400 Sub-Compact Tractor
THE DETAILS
How the 2400 handles compact-property versatility
The TYM 2400 pairs its 24-hp engine with hydrostatic transmission. Its listed PTO output is 18 hp for powered implements. Compare the listed specifications to see whether its size and controls suit mowing, landscaping, and smaller property chores.
Shop Our Inventory
$20,750.00
This model isn’t in stock right now.
Explore our current tractor inventory to find a similar model, or contact our team for help finding the right fit.
ENGINE
Engine Manufacturer
TYM A1100N4
Type
Natural aspiration
Engine power
24 hp | 17.9 kW
PTO power
18 hp | 13.5 kW
Rated engine speed
2800 rpm
No. of cylinders
3
Displacement
71.7 cu. in. | 1175 cc
Air cleaner
Dry element
Alternator
12V, 50A
Fuel system
IDI
FEATURES
Transmission type
HST
No. of speeds
2-Range
Max. traveling speed
11.1 mph | 17.9 km/h
Brakes
Wet, multi-disc
Steering
Hydrostatic
Clutch
Dry single plate
MEASUREMENTS
Overall length with 3-point hitch
120.3 in. | 3055 mm
Overall width
44.2 in. | 1123 mm
Wheelbase
59.1 in. | 1502 mm
Height to top of ROPS
87.3 in. | 2219 mm
Min. ground clearance
12.1 in. | 307 mm
Min. turn radius with brakes
9.6 ft | 2.93 m
Min. turn radius without brakes
9.6 ft | 2.93 m
Weight with ROPS
1892 lb | 858 kg
