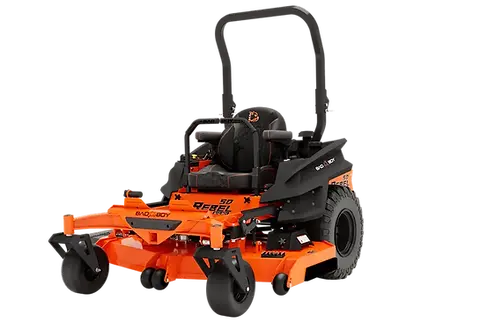

Bad Boy Rebel SD 61" Kohler Confidant 25HP
THE DETAILS
Rebel strength in a tighter footprint
The Bad Boy Rebel SD 61" Kohler Confidant 25HP is the Rebel SD lineup's option with 61-inch cutting width and Kohler Confidant power. The Rebel SD uses a welded frame and reinforced deck while keeping the machine easier to place in tighter spaces. Its deck and drive information below can help you compare it with other configurations.
DRIVE LINE
Engine
Kohler 747cc, 25hp Air-Cooled Confidant ZT740
Transmission
Hydro-Gear® 4400 16cc Integrated Transaxle
Industry-Leading 3/8˝ Steel Front Forks
Heavy-Duty Cast, Maintenance-Free Spindles
Electric PTO
Standard Electric PTO
Rear Tires / Front Tires
24x12-12 Reaper® / 13x6.5-6 Smooth No-Flat Front
Fuel
13 gal., Unleaded Gasoline
Ground Speed Forward
Up to 12 mph
FEATURES
Seat Lifts for Easy Maintenance and Cleaning
Seat lifts for easy underside access and cleaning
Heavy-Gauge, All-Steel, All-Welded Frame
Heavy-duty welded steel frame
Comfort Seat
Plush high-back comfort seat
DECK
Deck Height/Length
61"/94.7" (Approximate based on 61" deck specs)
Cutting Width
61"
Chute Up/Chute Down Width
63.5"/75.5"
Deck Thickness
Sloped 1/4" or 3-Gauge All Steel, Formed & Welded Deck with Reinforced 3/8" Sides
Cutting Height
1" – 5" with Deck Height Control System
Lift & Height Adjustment
Foot-Assist Manual Lift with Dial-Style Height Adjustment
