Implement Description

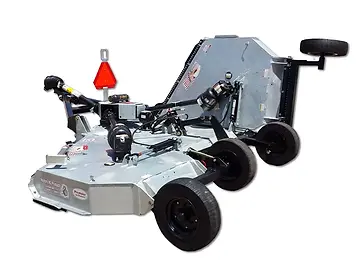

The Modern Ag 12' Predator combines a hot-dipped galvanized deck and frame with smooth underdecks for efficient mowing and long-term corrosion resistance. Front and rear safety chains, wing-lift hydraulics, replaceable skid shoes, and a swivel-clevis hitch are standard equipment.
Implement Specifications
12' PREDATOR
Cutting Width: 144"
Transport Width: 90"
Overall Width: 151"
Overall Length: 159"
Cutting Height: 2"–12"
Blade Overlap: 6"
Wing Lift Hydraulics: Standard
Wing Flex: 90° Up / 22° Down
Jackstand: Standard
Hitch: Swivel Clevis
Blade Carrier: Pan Stump Jumpers
Minimum PTO Horsepower: 40 hp
Main Gearbox / Divider Box: 160 hp
Outboard Gearboxes / Center and Wings: 70 hp
Output Shaft Diameter: 2"
Cut Capacity: 2-1/2"
Blade Tip Speed — Main/Center (540 RPM): 16,362 FPM
Blade Tip Speed — Wings (540 RPM): 15,708 FPM
Main Driveline: Cat. 5 Constant Velocity
Outboard Driveline: Cat. 4 with Slip Clutch
Deck Thickness: 3/16"
Side Skirt: 1/4" x 11"
Replaceable Skid Shoes: Standard
Front Safety Chains: Standard
Rear Safety Chains: Standard
Approximate Weight: 3,020 lbs.
Standard Tires: Laminated 600 x 9
Warranty: 5-Year Limited Gearbox / 10-Year Limited Deck Rust-Through
